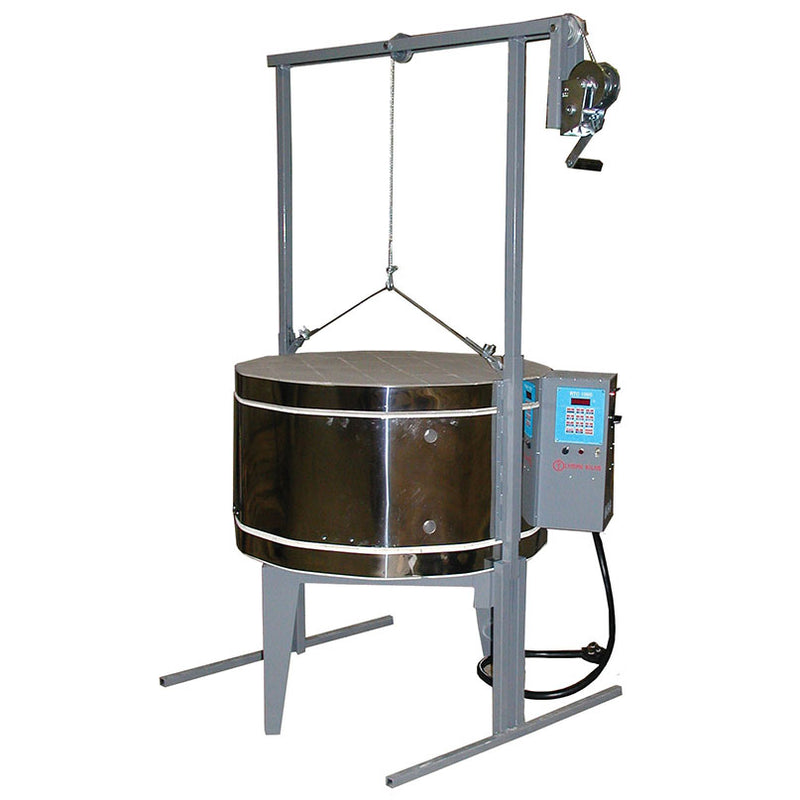

Olympic Kilns TopHat 2814E Electric Kiln

Olympic TopHat 2814E

This Olympic model uses a lifting chamber arrangement for access to the firing area. Confirm the firing process, workspace and handling requirements for your application before ordering.

Internal chamber (inches): 28 1/4 x 13.5
Chamber volume: 5 cu ft
Maximum temperature: 2350°F / Cone 10
Voltage options: 208 V, 240 V
Phase: Single Phase
Loading style: Bell Loading
Power source: Electric

Configuration

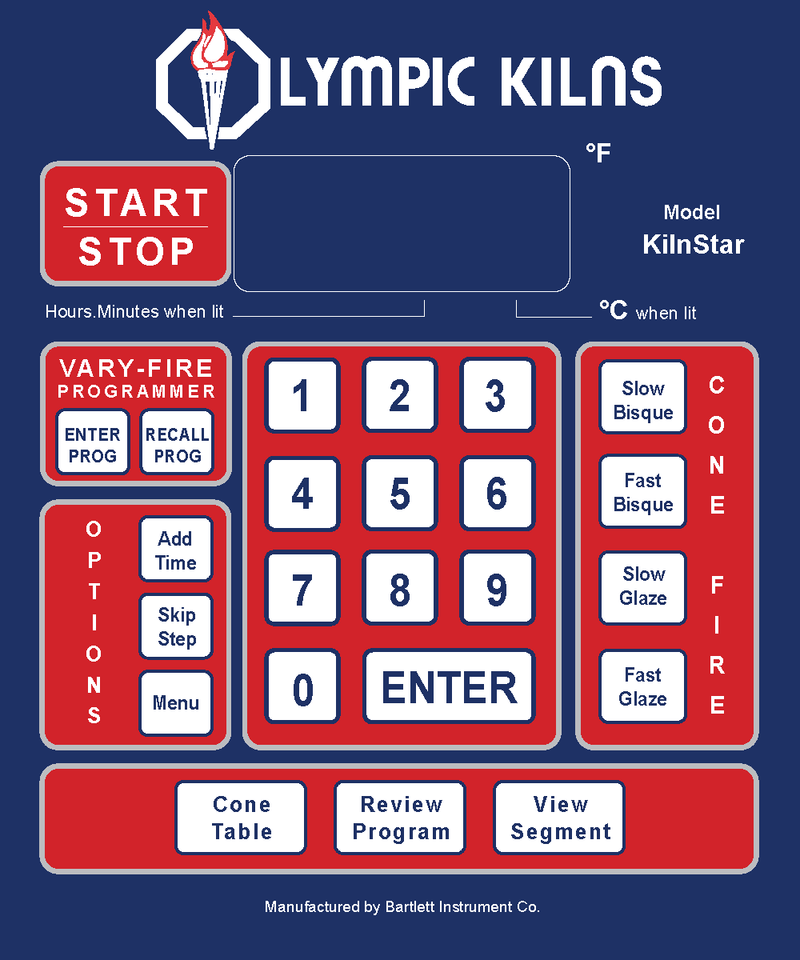

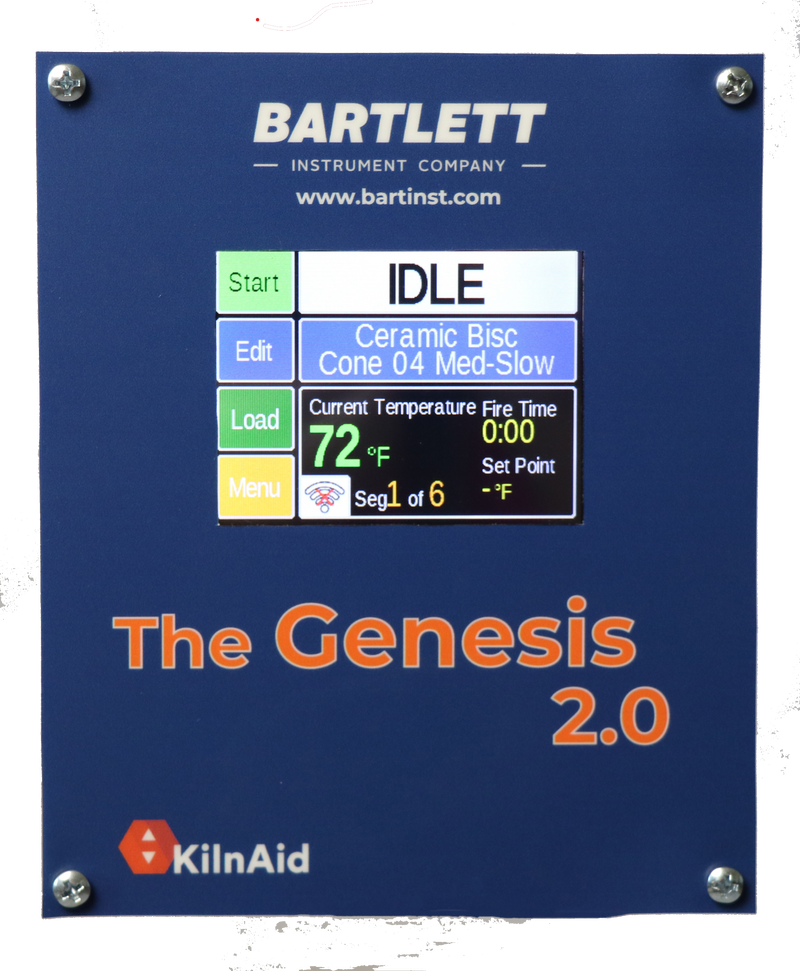

Choose the specified electrical supply, controller and available factory options. Supply voltage and phase must match the installation; have the site requirements checked before ordering. Optional accessories are additional unless expressly included in the selected model or package.

Delivery and support
Contact Pottery Kiln Direct for the current production estimate, freight quotation and access requirements for your address. For configuration help, call +1 (855) 785-5407 or email sales@potterykilndirect.com.

Manufacturer warranty
Manufacturer warranty terms apply. Ask us for the applicable model warranty and claim process before ordering.

Model: TopHat 2814E

Model | TopHat 2814E | Wiring Specifications | 1 Phase
Equipped with Lid Lift Assist | N/A | Volts | 208 | 240
Inside Chamber Dimensions w x d x h (inches) | 28 1/4 x 13.5 | Amps | 55 | 48
Cubic Feet | 5 | Watts | 11,520
Outside Dimensions with Stand or Frame w x d x h (inches) | 49 x 36 x 66 | Breaker Required | 70 Amp | 60 Amp
Brick Thickness | 3” | Plug Configuration | Direct Wired | NEMA 6-50
Maximum Temperature | Cone 10-2350°F/1288°C | Copper Wire Size | #6, #4 if the circuit is longer than 40 ft
Est Ship Wt. | 375 lbs.

Electrical ratings vary by voltage and phase. Read each set of values in the order shown in the manufacturer table. Confirm the selected configuration before installation.
