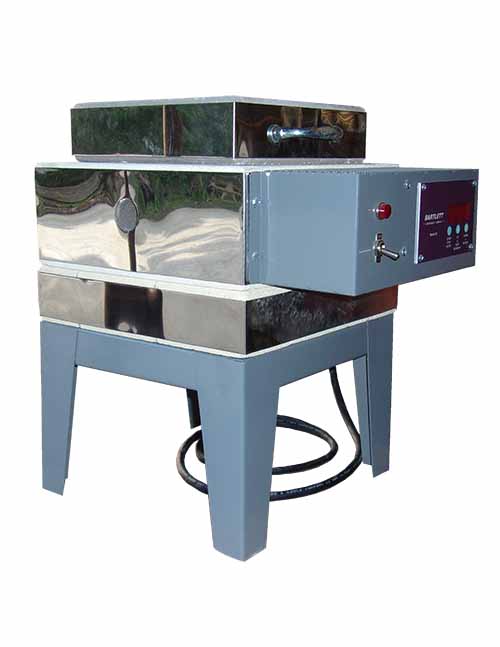

Olympic Kilns HB64E Electric Kiln

Olympic HB64E

This compact Olympic model runs on a specified 120 V supply. Check the dedicated circuit and plug requirements; a 120 V model is not automatically suitable for every household outlet.

Internal chamber (inches): 6.5 x 6.5 x 4.5
Chamber volume: .11 cu ft
Maximum temperature: 2350°F / Cone 10
Voltage options: 120 V, 208 V, 240 V, 480 V
Phase: Single Phase
Loading style: Top Loading
Power source: Electric

Configuration
Choose the specified electrical supply, controller and available factory options. Supply voltage and phase must match the installation; have the site requirements checked before ordering. Optional accessories are additional unless expressly included in the selected model or package.

Delivery and support
Contact Pottery Kiln Direct for the current production estimate, freight quotation and access requirements for your address. For configuration help, call +1 (855) 785-5407 or email sales@potterykilndirect.com.

Manufacturer warranty
Manufacturer warranty terms apply. Ask us for the applicable model warranty and claim process before ordering.

Model: HB64E

Model | HB64E | Wiring Specifications
Equipped with Lid Lift Assist | N/A | 120 Volts
Inside Chamber Dimensions w x d x h (inches) | 6.5 x 6.5 x 4.5 | 15 Amps
Cubic Feet | .11 | 1800 Watts
Outside Dimensions with Stand or Frame w x d x h (inches) | 16 x 16 x 13 | 20 Amp Breaker Required
Brick Thickness | 2.5” | Plug Configuration: NEMA 5-15
Maximum Temperature | Cone 10 - 2350°F/1288°C | Copper Wire Size: #12, #10 if the circuit is longer than 40 ft
Est Ship Wt | 34 lbs.

Electrical ratings vary by voltage and phase. Read each set of values in the order shown in the manufacturer table. Confirm the selected configuration before installation.
