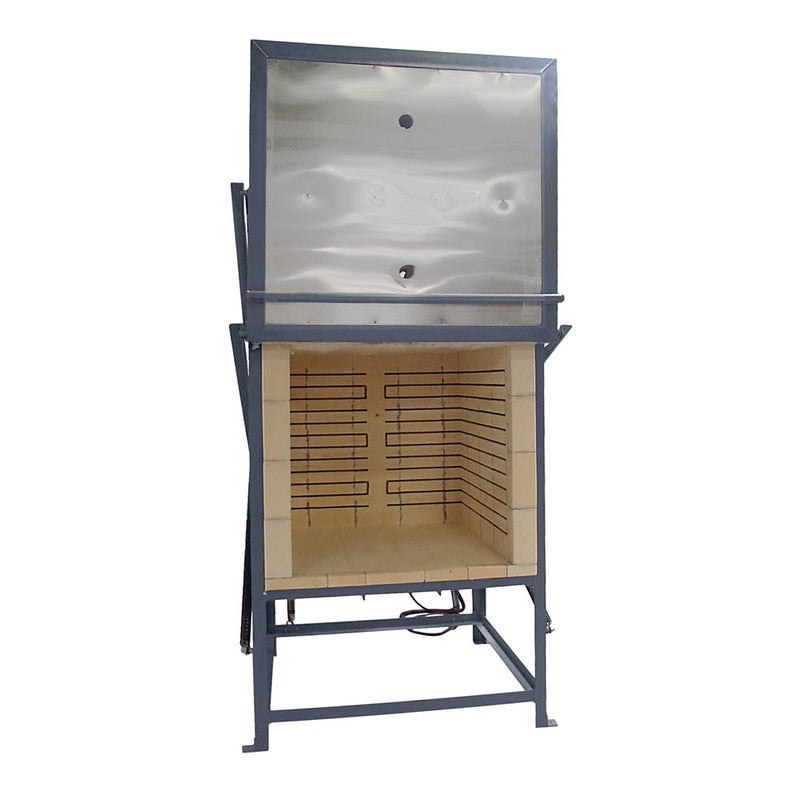

Olympic Kilns DPF24E Front-Loading Electric Kiln

Olympic DPF24E

This large-capacity Olympic model provides space for production loads and larger work. Check the kiln dimensions, delivery access and electrical installation before placing your order.

Internal chamber (inches): 34 x 34 x 36
Chamber volume: 24 cu ft
Maximum temperature: 2350°F / Cone 10
Voltage options: 208 V, 240 V
Phase: Single Phase, Three Phase
Loading style: Front Loading
Power source: Electric

Configuration
Choose the specified electrical supply, controller and available factory options. Supply voltage and phase must match the installation; have the site requirements checked before ordering. Optional accessories are additional unless expressly included in the selected model or package.

Delivery and support
Contact Pottery Kiln Direct for the current production estimate, freight quotation and access requirements for your address. For configuration help, call +1 (855) 785-5407 or email sales@potterykilndirect.com.

Manufacturer warranty
Manufacturer warranty terms apply. Ask us for the applicable model warranty and claim process before ordering.

Model: DPF24E

Model | DPF24E w GLift | DPF24E Car Kiln | Wiring Specifications | 1 Phase | 3 Phase
Inside Chamber Dimensions w x d x h (inches) | 34 x 34 x 36 | 34 x 34 x 36 | Volts | 208 | 240 | 208 | 240
Cubic Feet | 24 | Amps | 98 | 85 | 62 | 57
Outside Dimensions w x d x h (inches) | 51 x 66 x 67 | 64 x 68 x 68 | Watts | 20,400
Brick Thickness | 4.5”+1" Fiber | Breaker Required | 130 Amp | 110 Amp | 80 Amp | 80 Amp
Maximum Temperature | Cone 10 - 2350°F/1288°C | Plug Configuration | Direct Wired
Est. Shipping Wt. | 1,550 lbs. | 2,150 lbs. | Copper Wire Size | #4, #2 if the circuit is longer than 40 ft

Electrical ratings vary by voltage and phase. Read each set of values in the order shown in the manufacturer table. Confirm the selected configuration before installation.
