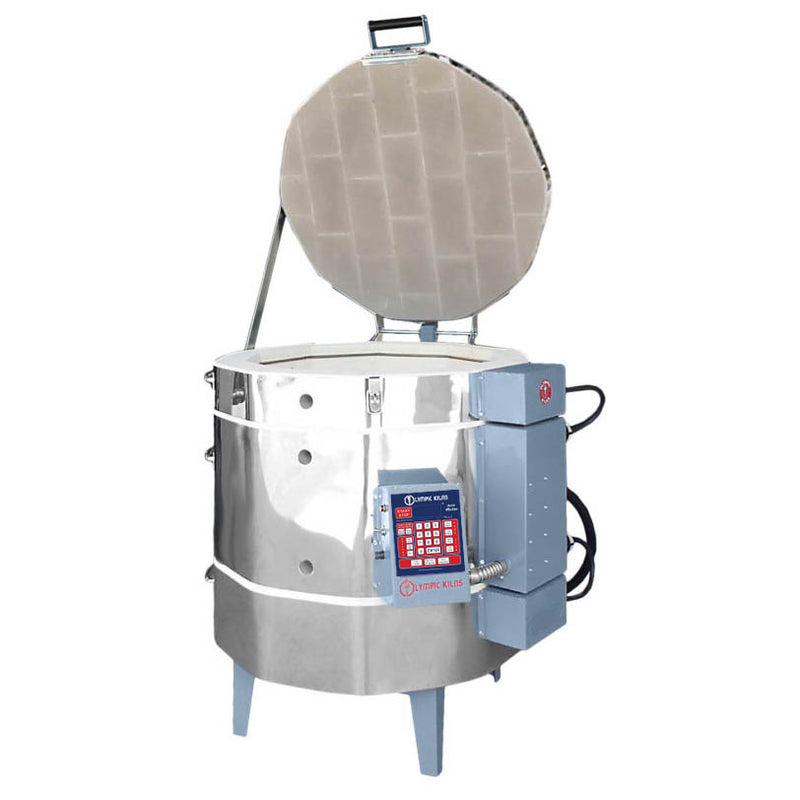

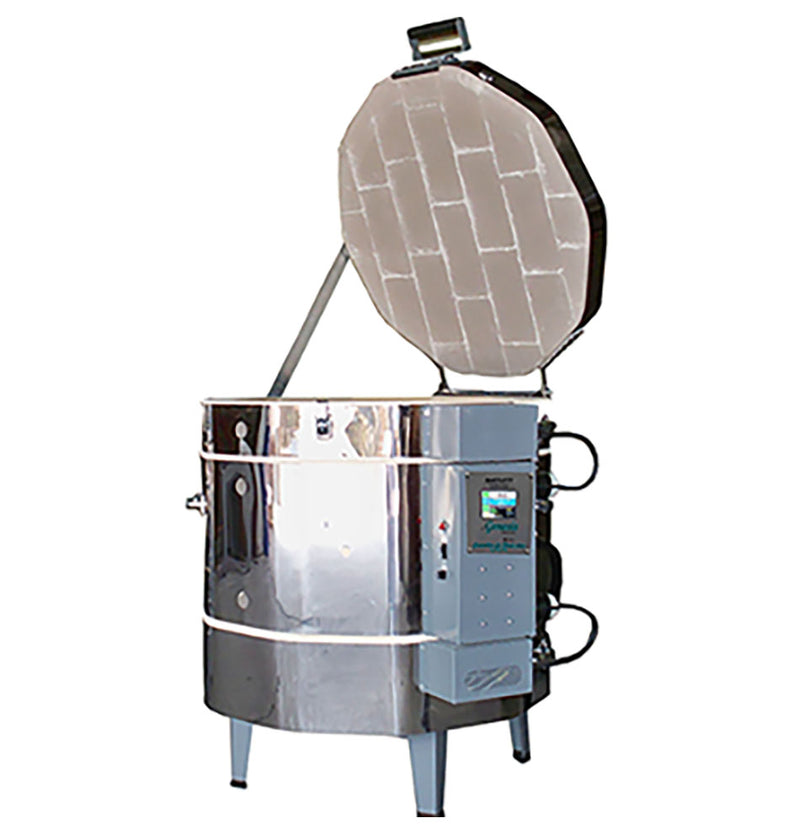

Olympic Kilns 2323HE Freedom Kiln Package

Olympic 2323HE Freedom

This Freedom Package combines an Olympic kiln with a studio equipment package. Review the supplier package contents before adding accessories so you do not order the same equipment twice.

Internal chamber (inches): 23 3/8 x 22.5
Chamber volume: 5.83 cu ft
Maximum temperature: 2350°F / Cone 10
Voltage options: 208 V, 240 V
Phase: Single Phase, Three Phase
Loading style: Top Loading
Power source: Electric

Configuration
Choose the specified electrical supply, controller and available factory options. Supply voltage and phase must match the installation; have the site requirements checked before ordering. Optional accessories are additional unless expressly included in the selected model or package.

Package contents should be confirmed against the current manufacturer specification. Furniture and vent equipment are not added again as optional extras in this listing.

Delivery and support
Contact Pottery Kiln Direct for the current production estimate, freight quotation and access requirements for your address. For configuration help, call +1 (855) 785-5407 or email sales@potterykilndirect.com.

Manufacturer warranty
Manufacturer warranty terms apply. Ask us for the applicable model warranty and claim process before ordering.

Model: 2323HE Freedom

Model | Freedom 2323HE | Wiring Specifications | 1 Phase | 3 Phase
Equipped with Lid Lift Assist | Yes | Volts | 208 | 240 | 208 | 240
Inside Chamber Dimensions w x d x h (inches) | 23 3/8 x 22.5 | Amps | 46 | 44 | 30 | 29
Cubic Feet | 5.83 | Watts | 10,560
Outside Dimensions with Stand or Frame w x d x h (inches) | 36 x 46.5 x 42.5 | Breaker Required | 60 Amp | 60 Amp | 40 Amp | 40 Amp
Brick Thickness | 3” | Plug Configuration | NEMA 6-50 | Direct Wired
Maximum Temperature | Cone 10 - 2350°F/1288°C | Copper Wire Size | #6, #4 if the circuit is longer than 40 ft
Est Ship Wt. | 380 lbs.

Electrical ratings vary by voltage and phase. Read each set of values in the order shown in the manufacturer table. Confirm the selected configuration before installation.
