Olympic Kilns 1823FLE Front-Loading Electric Kiln

Olympic 1823FLE

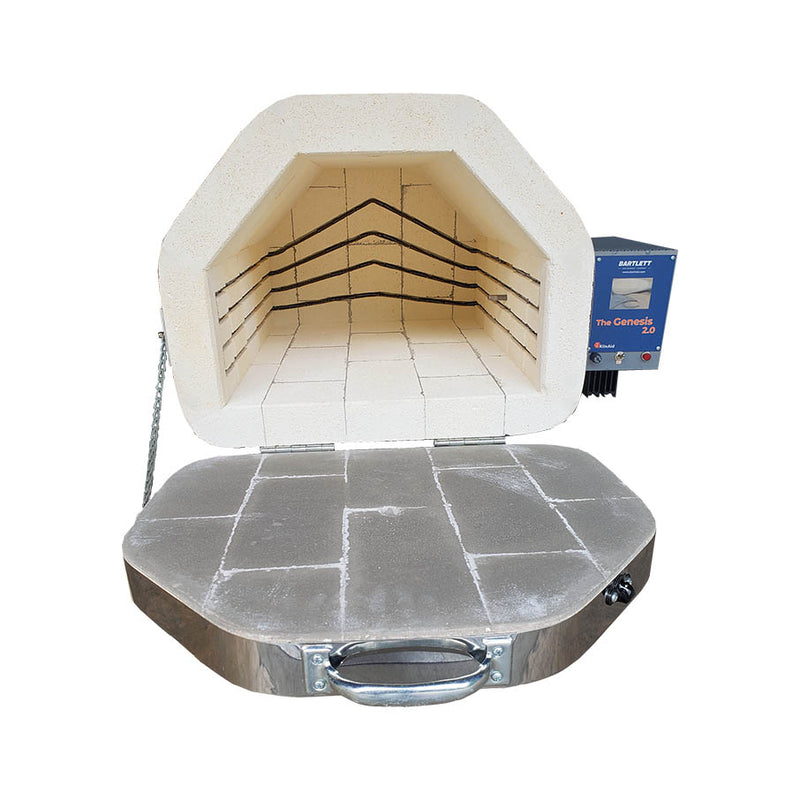

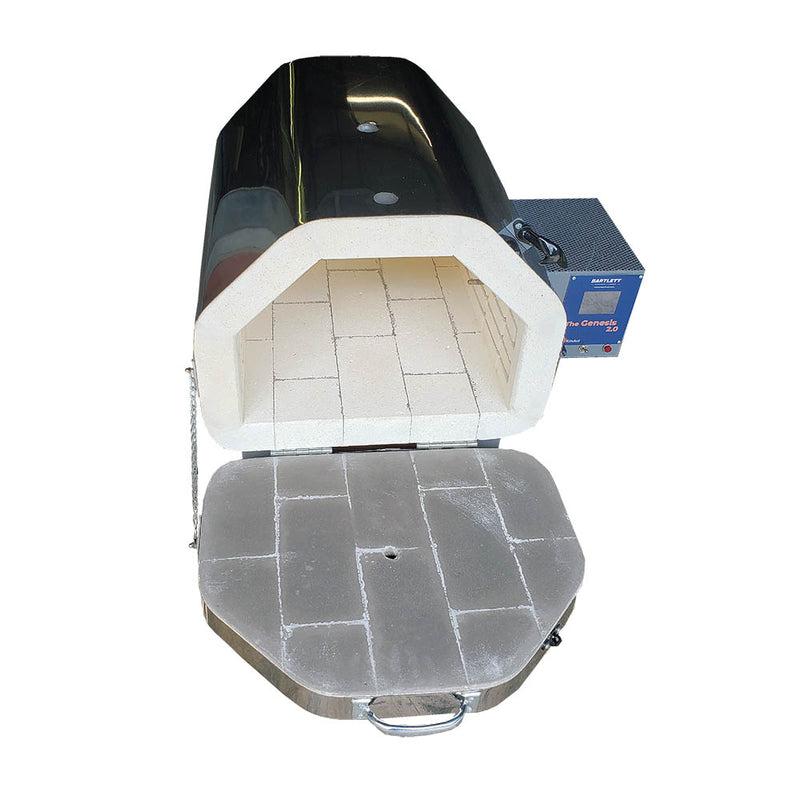

This Olympic front-loading model provides access through the chamber door. Compare the available door arrangements with the working space and loading access in your studio.

Internal chamber (inches): 17.5 x 22.5 x 12
Chamber volume: 2.44 cu ft
Maximum temperature: 2300°F / Cone 8
Voltage options: 208 V, 240 V
Phase: Single Phase
Loading style: Front Loading
Power source: Electric

Configuration

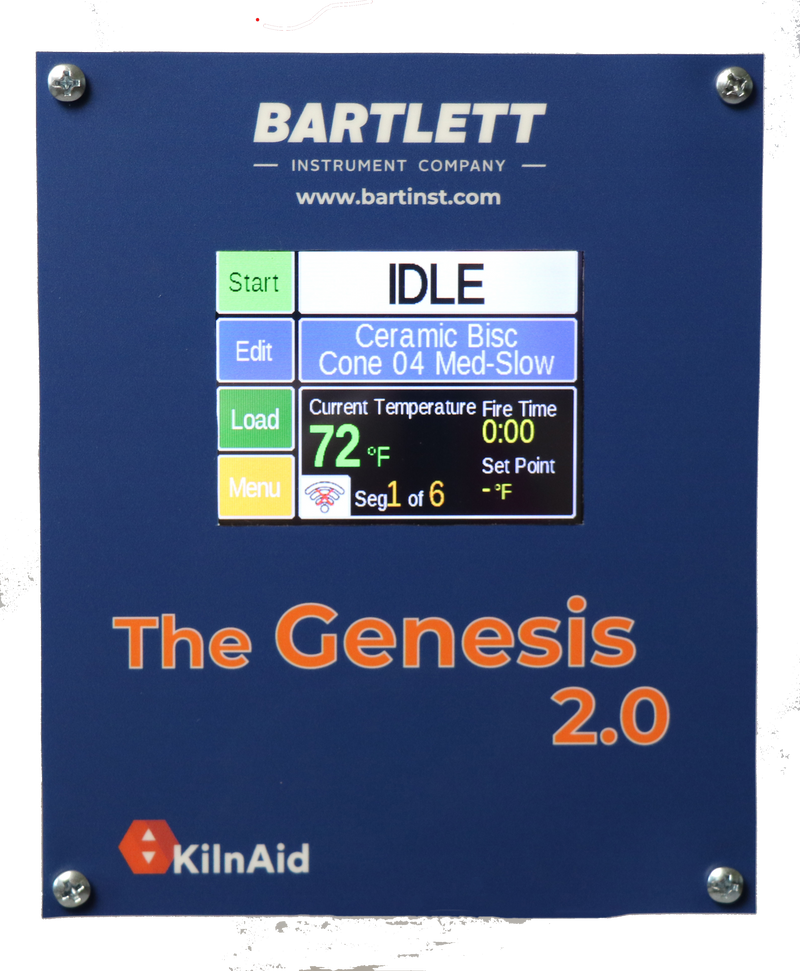

Choose the specified electrical supply, controller and available factory options. Supply voltage and phase must match the installation; have the site requirements checked before ordering. Optional accessories are additional unless expressly included in the selected model or package.

Delivery and support
Contact Pottery Kiln Direct for the current production estimate, freight quotation and access requirements for your address. For configuration help, call +1 (855) 785-5407 or email sales@potterykilndirect.com.

Manufacturer warranty
Manufacturer warranty terms apply. Ask us for the applicable model warranty and claim process before ordering.

Model: 1823FLE

Model | 1823FLE | Wiring Specifications | 1 Phase
Equipped with Lid Lift Assist | N/A | Volts | 208 | 240
Inside Chamber Dimensions w x d x h (inches) | 17.5 x 22.5 x 12 | Amps | 30 | 26
Cubic Feet | 2.44 | Watts | 6,240
Outside Dimensions with Stand or Frame w x d x h (inches) | 30.5 x 27 x 22.5 | Breaker Required | 40 Amp
Brick Thickness | 2.5” | Plug Configuration | NEMA 6-50
Maximum Temperature | Cone 8-2300°F/1260°C | Copper Wire Size | #8, #6 if the circuit is longer than 40 ft
Est Ship Wt. | 250 lbs.

Electrical ratings vary by voltage and phase. Read each set of values in the order shown in the manufacturer table. Confirm the selected configuration before installation.
