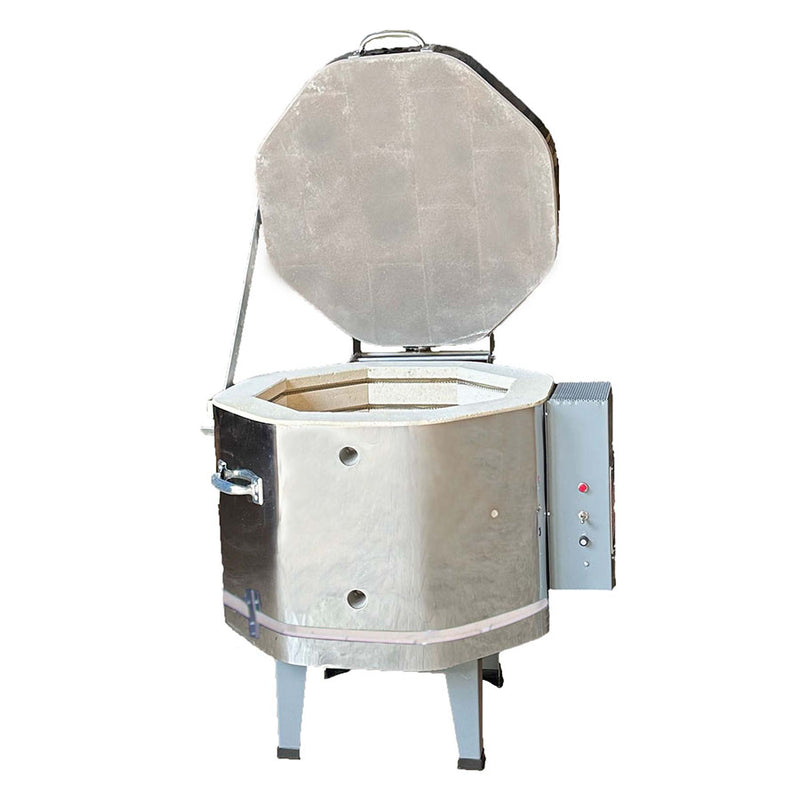

Olympic Kilns 1814HE Electric Kiln

Olympic 1814HE

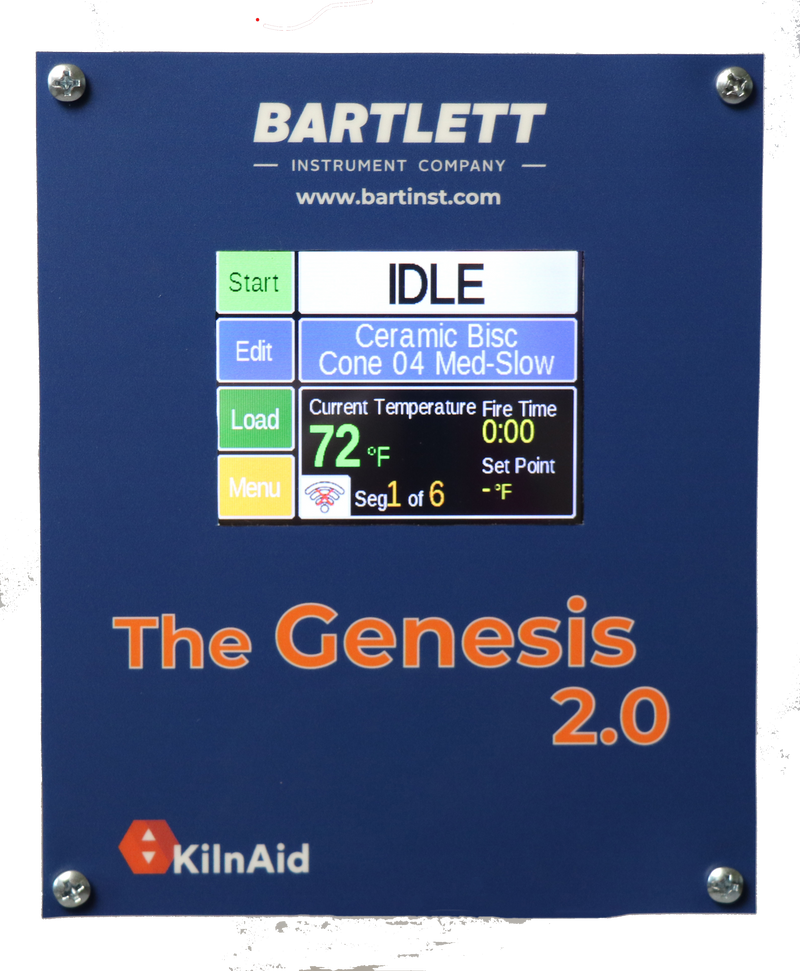

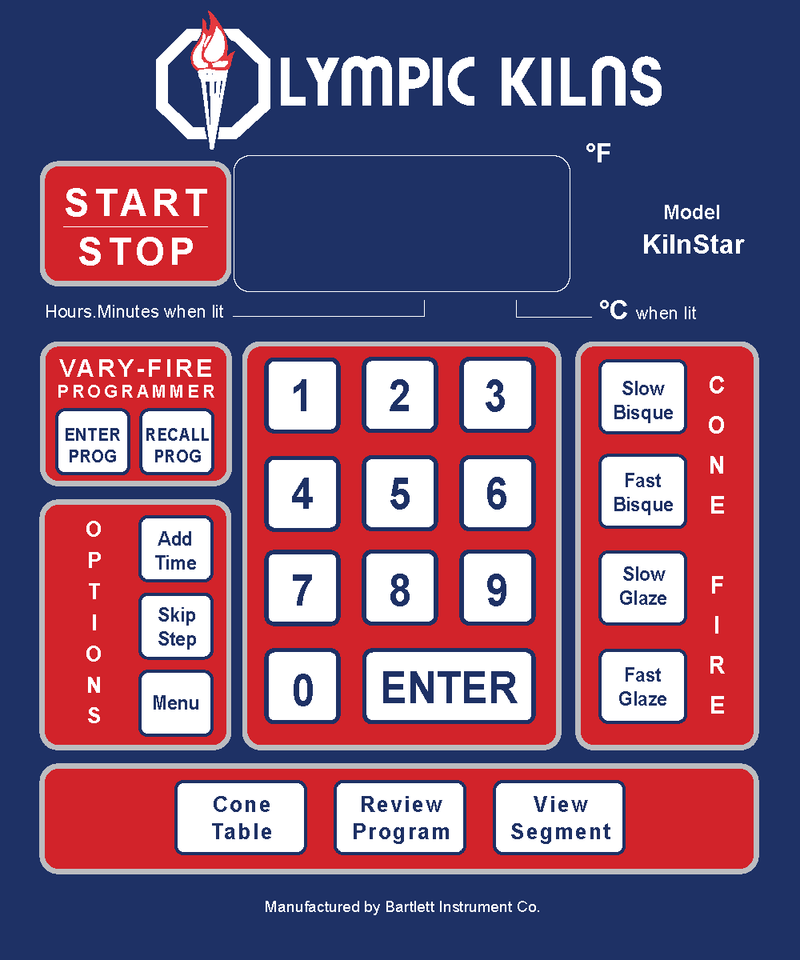

This Olympic electric kiln offers a top-loading chamber for studio pottery work. Select the power supply that matches your installation and the controller you prefer.

Internal chamber (inches): 17.5 x 13.5
Chamber volume: 1.97 cu ft
Maximum temperature: 2350°F / Cone 10
Voltage options: 208 V, 240 V
Phase: Single Phase
Loading style: Top Loading
Power source: Electric

Configuration
Choose the specified electrical supply, controller and available factory options. Supply voltage and phase must match the installation; have the site requirements checked before ordering. Optional accessories are additional unless expressly included in the selected model or package.

Delivery and support
Contact Pottery Kiln Direct for the current production estimate, freight quotation and access requirements for your address. For configuration help, call +1 (855) 785-5407 or email sales@potterykilndirect.com.

Manufacturer warranty
Manufacturer warranty terms apply. Ask us for the applicable model warranty and claim process before ordering.

Model: 1814HE

Model | 1814HE | Wiring Specifications | 1 Phase
Equipped with Lid Lift Assist | Optional | Volts | 208 | 240
Inside Chamber Dimensions w x d x h (inches) | 17.5 x 13.5 | Amps | 23 | 20
Cubic Feet | 1.97 | Watts | 4,800
Outside Dimensions with Stand or Frame w x d x h (inches) | 31.5 x 26.5 | Breaker Required | 30 Amp
Brick Thickness | 3” | Plug Configuration | NEMA 6-30
Maximum Temperature | Cone 10-2350°F/1288°C | Copper Wire Size | #10, #8 if the circuit is longer than 40 ft
Est Ship Wt. | 190 lbs.

Electrical ratings vary by voltage and phase. Read each set of values in the order shown in the manufacturer table. Confirm the selected configuration before installation.
